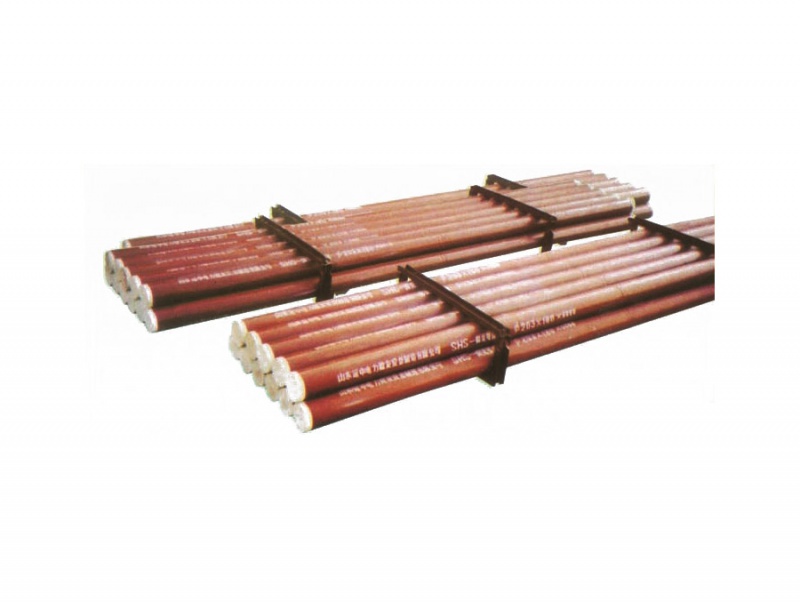

SHS陶瓷復合鋼管直管

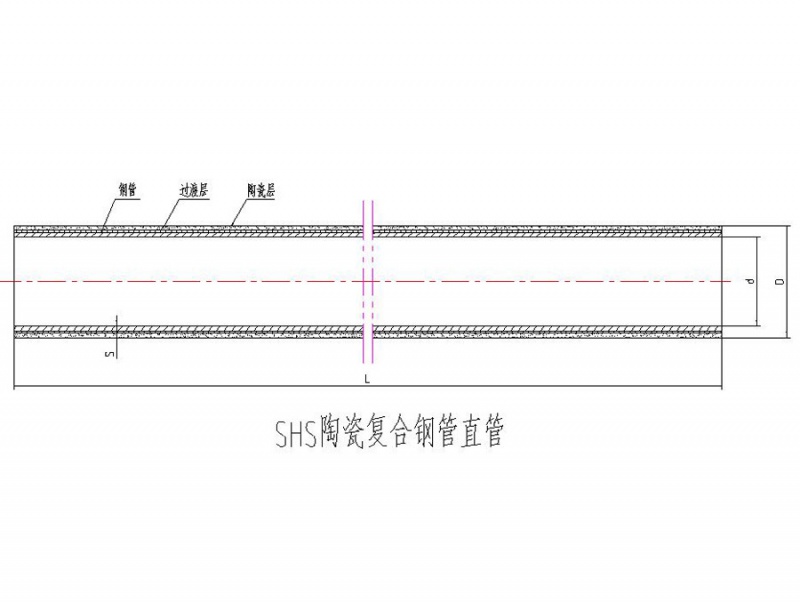

SHS- 自蔓燃剛玉陶瓷復合鋼管是新材料領域、并成功實現產業化的高科技成果之一。該產品從內到外分別由剛玉（a-AL2O3）陶瓷、過渡層、 鋼三層組成。剛玉陶瓷復合鋼管充分發揮了剛玉陶瓷具有的高耐磨、耐熱及鋼管具有的較高的強度、優良的韌性與焊接性能，克服了陶瓷韌性差以及碳鋼管硬度低、 耐磨性差的缺點。因此，該產品具有耐磨、耐熱、及抗機械沖擊與熱沖擊、可焊性好等優良的綜合性能?？蓮V泛用于電力、煤炭、鋼鐵、冶金、礦山、建材、化工等 行業，是輸送灰、渣、煤粉、礦粉、水泥、泥沙等顆粒物料、磨削性介質理想的耐磨管道。
該產品于1993年通過了冶金工業部的成果鑒定，并通過了冶金工業部、電力工業部聯合主持的“大直徑長直管SHS自蔓燃陶瓷復合鋼管”產品鑒定會(huì )（冶金工業部1997第53號）。
SHS-自蔓燃剛玉陶瓷復合鋼管的應用：
(1) 冶金、電力行業
(2) 礦山、煤炭行業
SHS-自蔓燃剛玉陶瓷復合鋼管的特點：
(1) 耐磨性好
(2) 運行阻力小
(3) 耐腐蝕、防結垢
(4) 耐溫性能與耐熱沖擊性能好
(5) 工程造價低
(6) 安裝施工方便
SHS陶瓷復合鋼管直管參數表
|
序號 |
鋼管直徑 mm |
鋼管壁厚 mm |
總壁厚 mm |
理論重量 kg/m |
|
1 |
68 |
6 |
9 |
11.75 |
|
7 |
10.5 |
13.48 |
||
|
2 |
70 |
6 |
9 |
12.12 |
|
7 |
10.5 |
13.92 |
||
|
3 |
73 |
6 |
9 |
12.68 |
|
7 |
10.5 |
14.58 |
||
|
4 |
76 |
6 |
9 |
13.25 |
|
7 |
10.5 |
15.25 |
||
|
5 |
83 |
6 |
9 |
14.58 |
|
7 |
10.5 |
16.79 |
||
|
6 |
89 |
6 |
9 |
15.72 |
|
7 |
10.5 |
18.12 |
||
|
7 |
95 |
6 |
9 |
16.86 |
|
7 |
10.5 |
19.44 |
||
|
8 |
102 |
6 |
9 |
18.18 |
|
7 |
10.5 |
20.99 |
||
|
9 |
108 |
8 |
11 |
25.25 |
|
9 |
12.5 |
28.12 |
||
|
10 |
14 |
30.94 |
||
|
10 |
114 |
8 |
11 |
26.77 |
|
9 |
12.5 |
29.83 |
||
|
10 |
14 |
32.83 |
||
|
11 |
121 |
8 |
11 |
28.54 |
|
9 |
12.5 |
31.82 |
||
|
10 |
14 |
35.4 |
||
|
12 |
127 |
8 |
11 |
30.5 |
|
9 |
12.5 |
33.52 |
||
|
10 |
14 |
36.93 |
||
|
13 |
133 |
8 |
11 |
31.57 |
|
9 |
12.5 |
35.23 |
||
|
10 |
14 |
38.83 |
||
|
14 |
140 |
8 |
11 |
33.33 |
|
9 |
12.5 |
37.22 |
||
|
10 |
14 |
41.03 |
||
|
15 |
146 |
8 |
11 |
34.85 |
|
9 |
12.5 |
38.92 |
||
|
10 |
14 |
42.93 |
||
|
16 |
152 |
8 |
11 |
36.36 |
|
9 |
12.5 |
40.63 |
||
|
10 |
14 |
44.82 |
||
|
17 |
159 |
8 |
11 |
38.13 |
|
9 |
12.5 |
42.61 |
||
|
10 |
14 |
47.03 |
||
|
18 |
168 |
8 |
11 |
40.4 |
|
9 |
12.5 |
45.17 |
||
|
10 |
14 |
49.87 |
||
|
19 |
180 |
8 |
11 |
43.43 |
|
9 |
12.5 |
48.58 |
||
|
10 |
14 |
53.66 |
||
|
20 |
194 |
8 |
11 |
46.97 |
|
9 |
12.5 |
52.56 |
||
|
10 |
14 |
58.08 |
||
|
21 |
203 |
8 |
11 |
49.24 |
|
9 |
12.5 |
55.11 |
||
|
10 |
14 |
60.92 |
||
|
22 |
219 |
8 |
11 |
53.28 |
|
9 |
12.5 |
59.66 |
||
|
10 |
14 |
65.97 |
||
|
23 |
245 |
10 |
13.5 |
74.18 |
|
11 |
15 |
81.25 |
||
|
12 |
16 |
88.26 |
||
|
24 |
273 |
10 |
13.5 |
83.02 |
|
11 |
15 |
90.97 |
||
|
12 |
16 |
98.89 |
||
|
25 |
299 |
10 |
13.5 |
91.22 |
|
11 |
15 |
100.00 |
||
|
12 |
16 |
108.71 |
||
|
26 |
325 |
10 |
13.5 |
99.43 |
|
11 |
15 |
109.03 |
||
|
12 |
16 |
118.56 |
||
|
27 |
351 |
12 |
15.5 |
128.41 |
|
13 |
17 |
138.7 |
||
|
14 |
18 |
148.9 |
||
|
28 |
377 |
12 |
15.5 |
138.25 |
|
13 |
17 |
149.37 |
||
|
14 |
18 |
160.41 |
||
|
29 |
402 |
12 |
15.5 |
147.72 |
|
13 |
17 |
159.62 |
||
|
14 |
18 |
171.46 |
||
|
30 |
426 |
12 |
15.5 |
156.81 |
|
13 |
17 |
169.47 |
||
|
14 |
18 |
182.07 |
||
|
31 |
480 |
12 |
15.5 |
177.27 |
|
14 |
18 |
205.93 |
||
|
16 |
20 |
234.34 |
||
|
32 |
500 |
12 |
15.5 |
184.84 |
|
14 |
18 |
214.77 |
||
|
16 |
20 |
244.44 |
||
|
33 |
530 |
12 |
15.5 |
196.21 |
|
14 |
18 |
228.02 |
||
|
16 |
20 |
259.56 |
||
|
34 |
630 |
12 |
15.5 |
234.09 |
|
14 |
18 |
272.22 |
||
|
16 |
20 |
310.09 |
